Pozi Connect: Victorian Council Data Audits
Pozi Connect generates parcel and property/address audits when it creates an M1. Use these audit reports to uncover anomalies in your council’s data.
Described below are techniques for filtering the audits to narrow down the records to show only the ones that require further attention.
Opening Audit
When opening a spreadsheet:
split window to freeze column headings
- place cursor in A2 cell, then
ALT
+W
+S
(doesn’t work on all versions of Excel) or - manually drag split pane control down past the first row
set autofilter on/off
- keyboard shortcut
ALT
+D
+F
+F
expand columns
- click top left corner to highlight all rows, then double-click on any column divider)
Filtering Audit

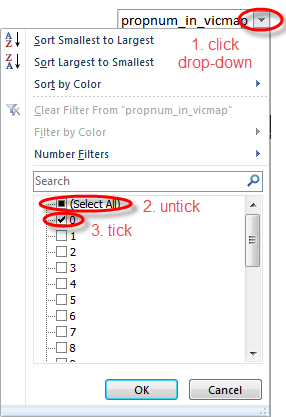

Example filter to select only 0
values
Council Parcel
Audit file: Audit - Council Parcels.csv
Structure
Column | Description | Usage |
---|---|---|
spi | council parcel description (in SPI format) constructed from council parcel attributes | |
crefno | council parcel id | |
propnum | council property number | |
summary | council-maintained combined address (council reference only) | |
status | council parcel status | |
spi_validity | description of any detected instances of SPI not meeting Vicmap rules | filter on NOT (Blank) to list non-compliant parcel descriptions |
spi_in_council | number of properties in Council that share this SPI | |
council_propnums | list of property numbers in Council that share this SPI | |
spi_in_vicmap | number of parcels in Vicmap that match this SPI | filter on 0 to list Council parcel descriptions that don’t exist in Vicmap |
spi_propnum_in_vicmap | number of parcels in Vicmap that match this SPI and property number | |
vicmap_propnums | list of property numbers in Vicmap that share this SPI | |
partial_spi_in_vicmap | number of parcels in Vicmap that match on plan_numeral but not plan_prefix | filter on NOT 0 to list parcels with potentially incorrect plan prefix |
alt_spi_in_vicmap | number of parcels in Vicmap that match on further_description field instead of spi | filter by NOT 0 to list parcels with potentially incorrect plan prefix |
suggested_spi | Vicmap SPI that matches closely to Council parcel based on existing crefno or partial SPI match | filter on NOT (Blank) to list potential easy fixes for invalid parcel descriptions |
propnum_in_council | number of Council parcel records that share this propnum | |
propnum_in_vicmap | number of Vicmap parcel records that matched to this propnum | filter on 0 to list unmatched properties, ie, CRITICAL |
crefno_in_vicmap | number of Vicmap parcel records that matched to this crefno | filter on 0 to list unmatched parcels, ie, CRITICAL |
m1_edit_code | update pending for this parcel | filter on (Blank) to list records not already flagged for update in current M1 |
m1_comments | comments for pending update |
Examples
Unmatched parcels, with suggested parcel description fixes (critical, easy)
The most valuable records to target, as they will result in new matches and are likely to be easily solved.
propnum_in_vicmap
: 0spi_in_vicmap
: 0suggested_spi
: NOT (Blank)
Plan Prefix Anomalies
Likely to be easily solved by updating a plan prefix. See suggested_spi
field for a hint of the correct plan prefix.
spi_in_vicmap
: 0partial_spi_in_vicmap
: NOT 0
Gridlocked Records
These are parcels that should be matched to Vicmap, but Pozi Connect cannot match them due to conflicting associations on the target Vicmap parcel.
It’s possible these will clear up in subsequent M1s after Pozi Connect removes any redundant records. Alternatively, if these remain unresolved, they should be manually inspected to determine if changes in the council property system are required to break the deadlock.
m1_edit_code
: (Blank)propnum_in_vicmap
: 0spi_in_vicmap
: NOT 0
Parish and Township Codes
The suggested_spi
field will often contain a parish/township code. To find the parish/township names that correspond with the codes, use the following lists.
Parish codes (PP2…, PP3…, PP4…): https://github.com/pozi/PoziConnectConfig/blob/master/~Shared/Reference/VMADMIN_PARISH.csv
Township codes (PP5…): https://github.com/pozi/PoziConnectConfig/blob/master/~Shared/Reference/VMADMIN_TOWNSHIP.csv
You can type the code (without the ‘PP’) into the ‘Search this file…’ section to quickly find the parish or township name.
Council Property Address
Audit file: Audit - Council Property Address.csv
Structure
Column | Description | Usage |
---|---|---|
propnum | council property number | |
status | council property status | |
address | combined council address constructed from council address attributes | |
locality | council locality | |
summary | council-maintained combined address (council reference only) | |
address_validity | description of any detected instances of address not meeting Vicmap rules | filter on NOT (Blank) to list non-compliant addresses |
parcels_in_council | number of parcels in Council that share this propnum | |
council_parcels | list of parcels in Council that share this propnum | |
parcels_in_vicmap | number of parcels in Vicmap that match this propnum | |
vicmap_parcels | list of parcels in Vicmap that match this propnum | |
vicmap_address | address of property in Vicmap that matches this propnum | |
vicmap_locality | locality of property in Vicmap that matches this propnum | filter on N to list wrong locality in Council |
propnum_in_vicmap | Council property number exists in Vicmap (Y/N) | |
address_match_in_vicmap | Council address matches Vicmap address (Y/N) | |
locality_match_in_vicmap | Council locality matches Vicmap locality (Y/N) | |
road_locality_in_vicmap | Council road name/locality combination exists in Vicmap (Y/N) | |
current_m1_edit_code | update pending for this parcel | filter on (Blank) to list records not already flagged for update in current M1 |
current_m1_comments | comments for pending update |
Examples
Locality Anomalies
Filter
locality_match_in_vicmap
: Nis_primary
: not Nhouse_number_1
: not blank
Vicmap Property address
Examples
Fragmented Properties
cohesion
: < 0.001propnum
: not blank
